Excellent adaptation to the site with diverse operation modes available for different conditions of use

Characteristics of AS K Series

Features & Benefits

• Diverse operaton modes for different conditions of use
  - Combined operation of A/B compressors
  - Simultaneous operation of A/B compressors
  - Single operation of A or B compressor
• Dual Compressor System
  - Composed of two independent compression systems
  - 5-step load control to 0%, 20%, 40%, 70% and 100% for energy conservation
  - Energy reduced by reducing start-up load through sequential start-up
• Separate attachment of oil cooler and after cooler for convenient maintenance and replacement
• Diverse operation modes with excellent response to conditions of use at the site

User Friendly Design

• Application of 6” large touch screen controller with pull-down menu
• Diverse operation modes can be selected [combined operation, simultaneous operation, single operatioin]
• Provision of information [operation status and replacement cycle of parts]
• Daytime schedule operation
• Multilingual support [Korean, Chinese, English, Russian, Portugese]

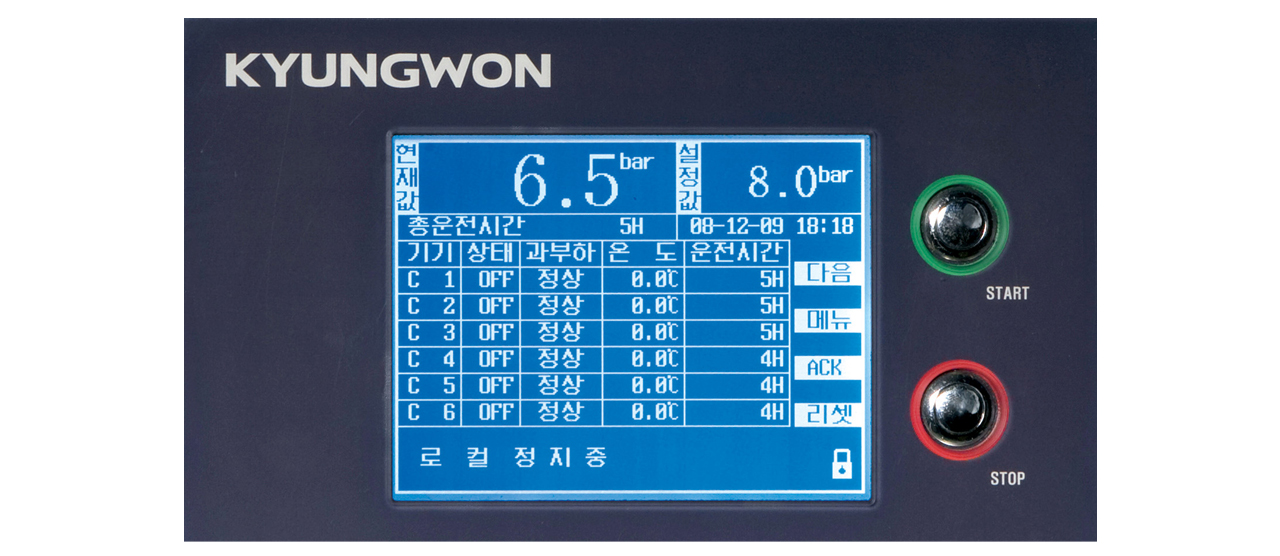

[Touch Screen Controller]

High Reliability

• Latest “α” profile maximizing voluem efficiency through improved sealing effect
• High load bearing is configured as a double system to secure design bearing lifetime of 100,000 HR
• Application of double lip seal or triple shaft sealing system for complete prevention of oil leak
• Application of dual separation system to minimize oil carry-over

Optimum Cooling Part

• Designed with side arrangement of oil cooler and inhalation structure for easy inspection and cleaning, as well as convenient attachment and detechment
• Application of high efficiency multi-wing cooling fan
• Application of H-type insulation fan motor

Operating Principle of AS K Series

Standard Specification of AS K Series

Compressor Type	Max.Working Pressure		Capacity		Motor Power		Noise	Dimension(LxWxH)	Weight	Air Outlet
	kgf/㎠G	psig	㎥/min	cfm	kw	HP	dB(A)	mm	kg	A(B)
AS301K	7.0 8.5 9.5	100 120 135	42.6 37 33.2	1504 1307 1172	110x2	300	82	3890x1850x2250	5872	100(4)
AS351K	7.0 8.5 9.5	100 120 135	49.4 43.3 41.4	1745 1529 1462	132x2	364	84	3500x1940x2300	5452	100(4)
AS402K	7.0 8.5 9.5	100 120 135	56.2 51.4 51.2	1985 1752 1730	160x2	428	87	3890x1850x2250	6372	100(4)
AS501K	7.0 8.5 9.5	100 120 135	67.0 61.7 58.6	2366 2083 1942	200x2	536	90	4440x2050x2250	7350	125(5)

• Specifications are subject to change without prior notice due to remodeling of products, etc.
