Scroll All in One series that integrates (dryer + filter + tank) air cleaning system

Characteristics of AL A Series

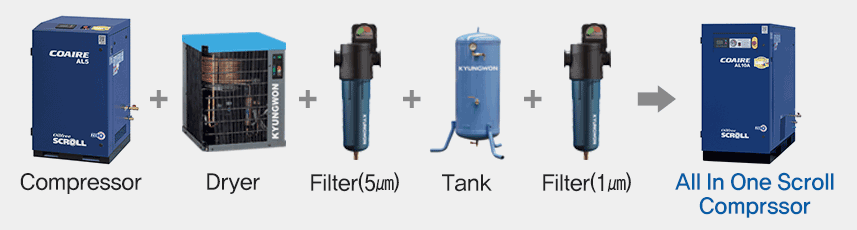

Functions of compressor, dryer, filter and tank are combined into one!

• All functions including freezing dryer are internalized for instant use without piping work
• Default application of stainless tank to supply clean compressed air
• Compact size for installation in a narrow space

• Freezing dryer dew point: 10°C, line filter filtration: 5 micronn
• Receiver tank: 3~5HP (38ℓ) default, 7.5~10HP (74ℓ) optional

Standard Specification of AL A Series

Type	Max. Working Pressure		Capacity		Motor Power		Noise	Dew Point	Tank Volume	Fiteration	Dimension (LxWxH)	Air Outlet	Weight
	kgf/㎠G	psig	LPM	CFM	kw	HP	dB(A)	℃	ℓ	㎛	mm	A(B)	kg
AL3A	8.0 9.9	115 140	271 219	9.6 7.7	2.2	3	49	10	38	5	700x740x1450	15(1/2)	210
AL5A	8.0 9.9	115 140	420 352	14.8 12.4	3.7	5	50	10	38	5	700x740x1450	15(1/2)	220
AL7A	8.0 9.9	115 140	691 571	24.4 20.2	2.2x1 3.7x1	3x1 5x1	52	10	74	5	700x1530x1390	25(1)	435

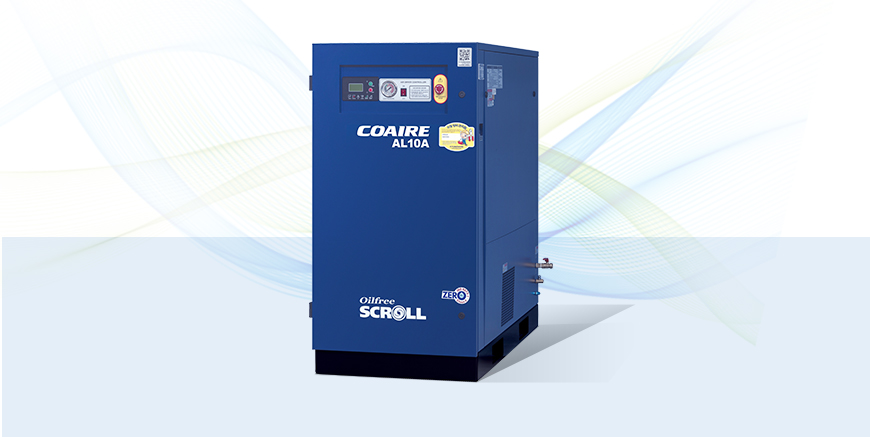

AL10A	8.0 9.9	115 140	840 704	29.6 24.9	3.7x2	5x2	53	10	74	5	700x1530x1390	25(1)	445

• Specifications are subject to change without prior notice due to remodeling of products, etc.
• If moving caster adopted, height increases 40㎜.
