Compact size, delicate new scroll compressor

Characteristics of AL P SERIES

Kyungwon makes a difference!

• Our company is a renowned manufacturer of compressors with 40 years of history, founded in 1968.
• As large volume of air is stored from single compression, the product does not repeat starting and stopping in a short time, preventing interference of treatment.
• Compressor and dehumidifier are separated to exhibit 100% of their own functions.
• Installation kit is provided for easy installation by anyone.
• About 40 agencies are available in the nation for quick A/S.

Scroll air compressor of Kyungwon with advanced technology sets forth the standard of a good dentist.

• 100% oil free technology of Kyungwon supplies compressed air with highest quality.
• Excellent low noise design causes no discomfort on patients during treatment.
• Movable wheels are attached to remove restriction on installation place.
• It has compact design for installation in a narrow space.

100% oil free product completely removed moisture in air to exacting air quality demanded at the dentist.

•

  Oil residue limit
  Oil is not used in the compression process to supply highly clean compressed air (100%)

•

  Moisture residue limit
  Dried air not exceeding dew point of 5°C under pressure is supplied

•

  Fine particle residue limit
  A filter is attached to remove solids as small as 1㎛

•

  Smell residue limit
  A carbon filter is installed to remove unpleasant smell in compressed air

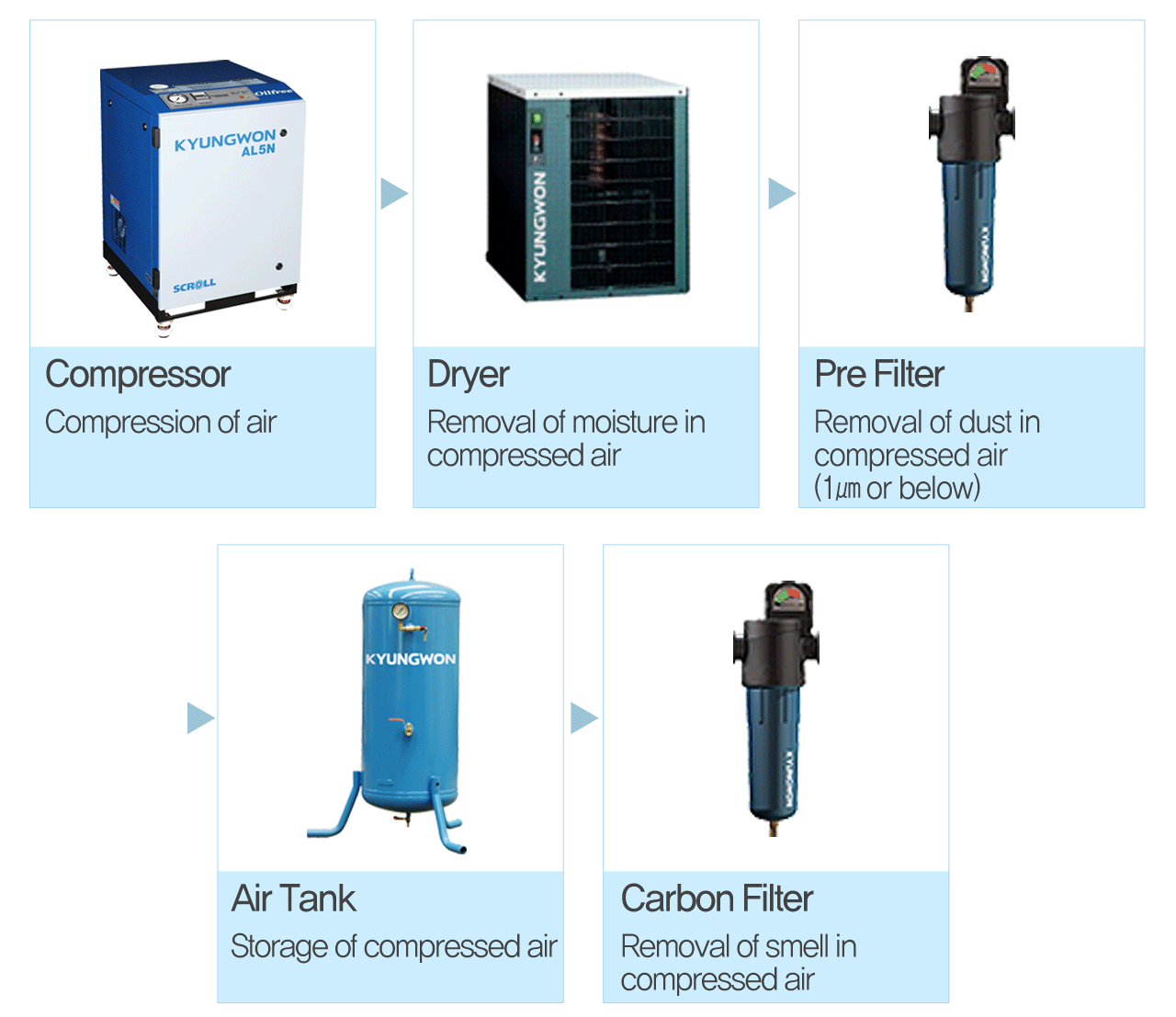

Roles and Specifications of Each System

Moisture, dust and smell are completely removed from 100% oil free air to promote safety of dental treatment.

Standard Specification of AL P Series

Model	Max.Working Pressure		Capacity		Motor Power		Noise	Dimension(LxWxH)	Air Outlet	Weight
	kgf/㎠G	psig	LPM	CFM	kW	HP	dB(A)	mm	A(B)	kg
AL3P	8.0 9.9	113 140	271 219	9.6 7.7	2.2	3	50	550x670x780	15(1/2)	130
AL5P	8.0 9.9	113 140	420 352	14.8 12.4	3.7	5	50	550x670x780	15(1/2)	140
