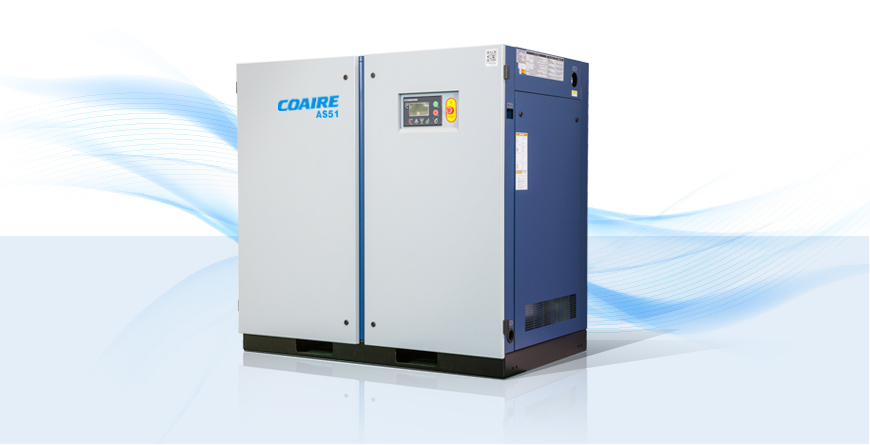

Best among equivalents! Screw air compressor of Kyungwon

Characteristics of AS Series

Best performance

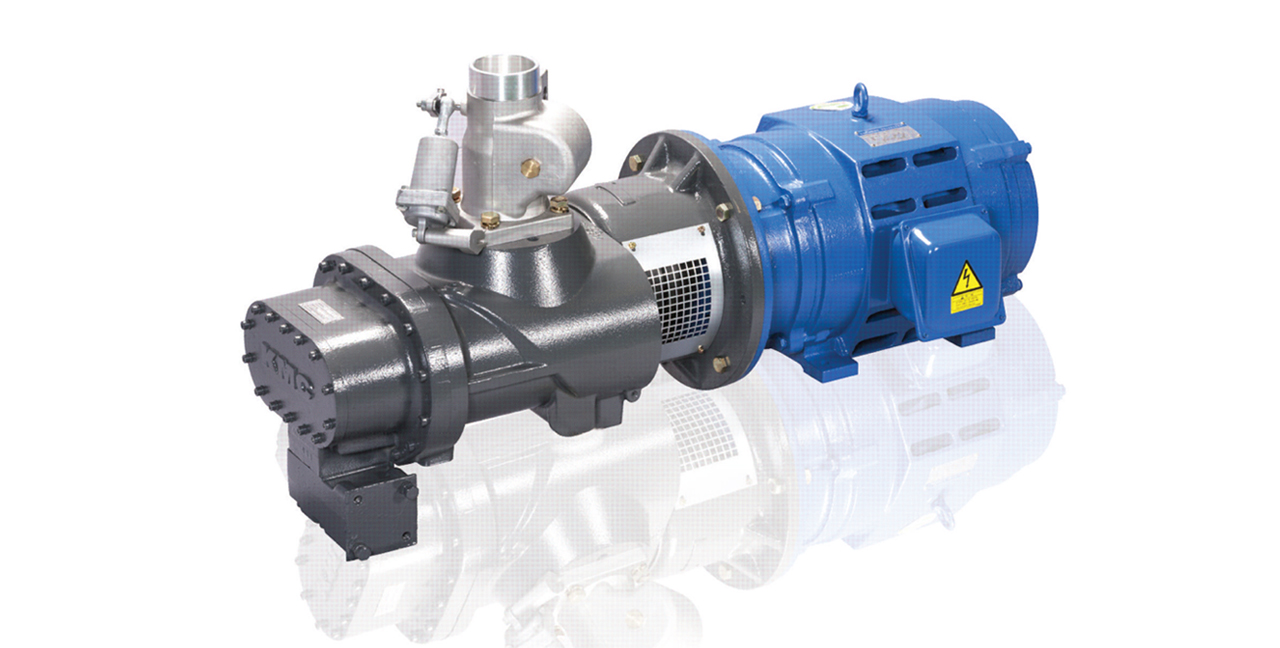

• Direct connection of large hole airend and high efficinecy motor
  Direct connection method removes transmission loss from gear method or belt slip to increase transmission efficiency

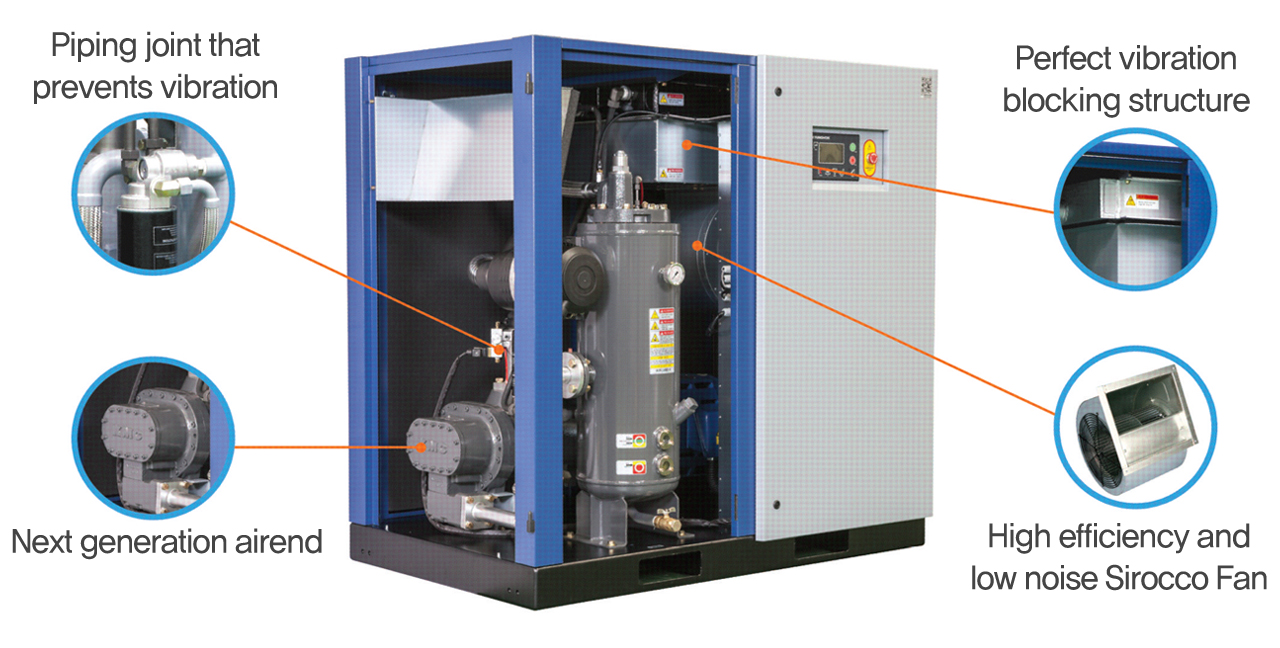

Minimum operation noise among equivalents

• Next generation airend developed using unique technology of Kyungwon guarantees quiet operation, and silencer, Sirocco Fan and high-density sound absorber designed and manufactured through cooling air flow simulation were applied for low noise that allows conversation

User-oriented design

• Easy Operation
  Key-pad is arranged for convenience of driver, and history monitoring function allows for stable operation

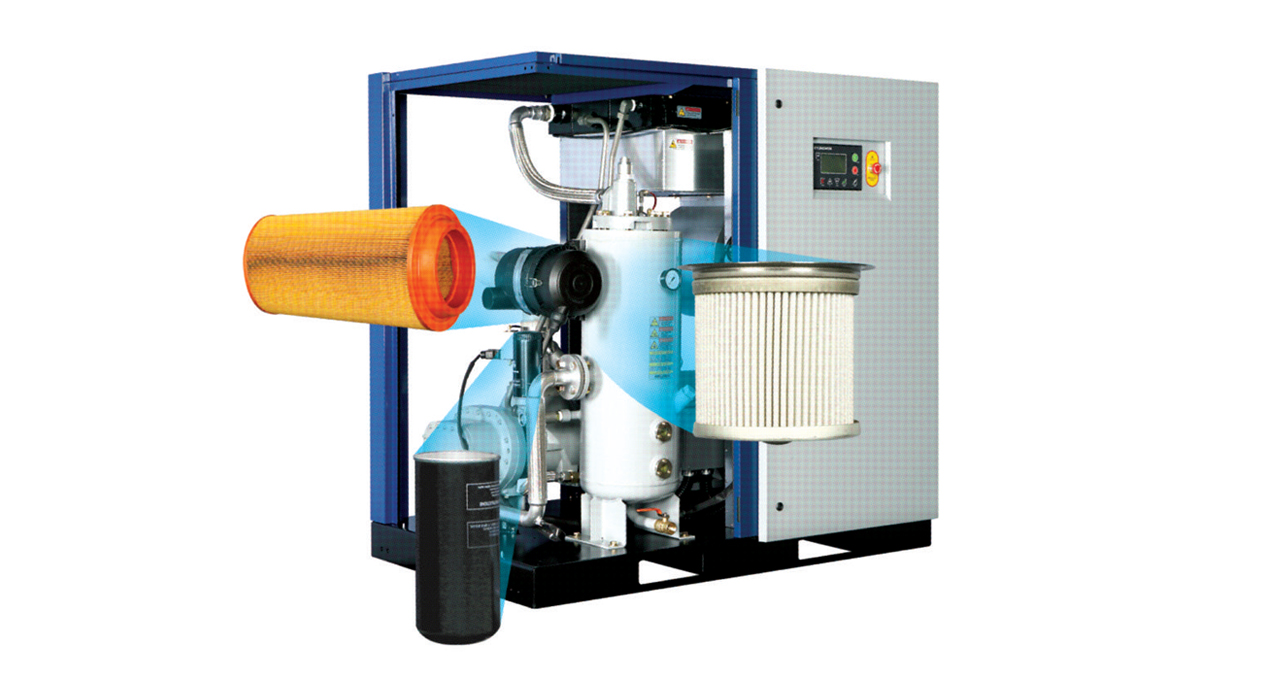

• Easy Maintenance
  All parts can be easily replaced by simply opening the front door, minimizing maintenance time
• Easy Installation
  Low operation noise and vibration of Kyungwon screw compressor guarantee easy and convenient installation. Compact dimension minimizes installation area for easy installation in narrow space.

High reliability

• Excellent durability
  Next generation airend manufactured with stable operating temperature, cooling system with spare design and mean bearing lifetime of 100,000 HR
• Use of parts with highest performance
  Use of parts for which reliability is secured by operation test and accelerated life test, and development and use of OEM products for renowned makers around the world
• 5-step quality verification system
  Quality verification system that performs design based on structural analysis and testing under actual conditions of customer’s use

Standard Specification AS Series

Type	Max. Working Pressure		Capacity	Motor Power	Noise	Dimension (LxWxH)	Weight	Air Outlet
	bar	psig	㎥/min	kw	dB(A)	mm	kg	A(B)
AS31	7.0 8.5 9.5	100 120 135	3.46 3.41 3.1	22	63	1400x830x1350	700	25(1)
AS41	7.0 8.5 9.5	100 120 135	4.8 4.5 4.2	30	65	1400x830x1350	785	25(1)
AS51	7.0 8.5 9.5	100 120 135	5.9 5.8 4.4	37	65	1660x1030x1607	1030	40(1 1/2)
AS76	7.0 8.5 9.5	100 120 135	10.4 8.4 8.0	55	72	2000x1210x1857	1630	50(2)
AS102	7.0 8.5 9.5	100 120 135	12.5 12.5 10.2	75	75	2000x1210x1857	1650	50(2)
AS151	7.0 8.5 9.5	100 120 135	20.7 20.3 20.1	132	78	2550x1470x2156	2785	65(2 1/2)
AS201	7.0 8.5 9.5	100 120 135	26.5 24.0 22.7	160	79	2700x1640x2156	2950	80(3)
AS251	7.0 8.5 9.5	100 120 135	31.0 31.0 30.9	200	81	2700x1640x2156	3250	80(3)
AS301	7.0 8.5 9.5	100 120 135	38.9 35.9 32.6	225	84	4080x1900x2356	6200	100(4)
AS401	7.0 8.5 9.5	100 120 135	48.7 44.2 44.1	300	89	4080x1900x2356	6430	100(4)
AS501	7.0 8.5 9.5	100 120 135	* * *	375	91	4200x2100x2500	7950	125(5)

• Specifications are subject to change without prior notice due to remodeling of products, etc.
• * Inquires on specifications for power and pressure not listed above should be directed to Kyungwon or authorized dealer.
