Excellent filtering performance achieved through application of patented elements

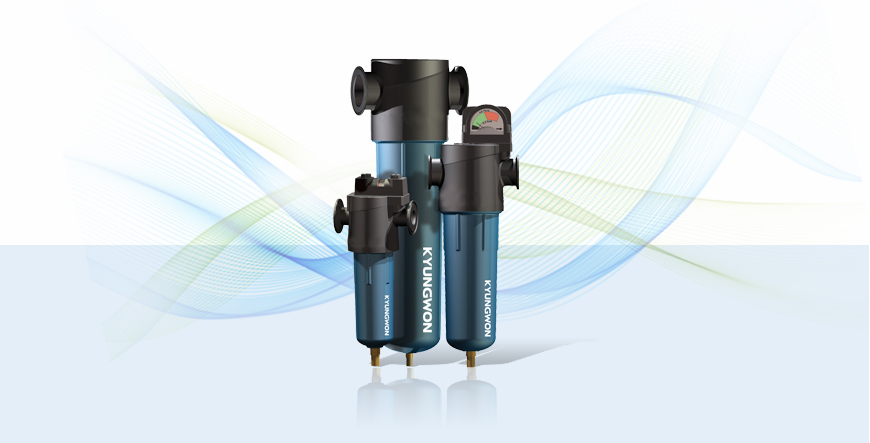

Characteristics of NGF Series Products

New NGF series applied patented elements to fully minimize differential pressure in filters and achieve excellent filtering performance, increasing energy efficiency.

Features & Benefits

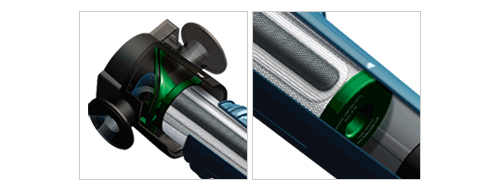

• Patented element design, Venturi-Wave TM
• Deep wrinkle-type element showing high performance
• Innovative reduction in differential pressure and perfect removal of oil and moisture in liquid and mist
• Differentiated management of differential pressure and performance show excellent reduction of operating expenses
• Manometer is optional

Specification of Each NGF Series Model

Element Grade	S	P/PD	H	U	C
Size of Residual Particle (ISO 12500-3)	3.0㎛	1.0㎛	0.01㎛	0.01㎛	0.01㎛
Solid Particle Removal Efficiency (ISO 12500-3)	-	99.999+%	99.999+%	99.999+%	99.999+%
Oil Removal Efficiency (ISO 12500-1)	50%	80%	99.9+%	99.99+%	-
Residual Oil (ISO 12500-2)	5.0mgf㎥	2.0mgf㎥	＜0.01mgf㎥	＜0.001mgf㎥	＜0.004mgf㎥

• ISO 12500 : as an international standard that regulates the method for compressed air filter test and measurement, it regulates tests on oil, oil vapor and solid particle in filters.
  1) ISO 12500-1 : Oil (oil removal performance test)
  2) ISO 12500-2 : Oil Vapor (oil vapor removal performance test)
  3) ISO 12500-3 : Particle (solid particle removal performance test)


Detailed Specification of NGF Series

Model	Capacity	Port Diameter	Dimension(mm)		Weight
	N㎥/min	PT	W	H	kg
S/P/H/U/C70, P70D	1.98	1/2＂	114	260	0.9
S/P/H/U/C150, P150D	4.25	3/4＂	132	271	1.4
S/P/H/U/C200, P200D	5.66	1＂	132	335	1.6
S/P/H/U/C300, P300D	8.49	1 1/2＂	200	346	3.8
S/P/H/U/C500, P500D	14.14	2＂	200	575	5.3
S/P/H/U/C800, P800D	22.65	3＂	231	852	8.5
S/P/H/U/C1100, P1100D	31.15	3＂	231	1034	12.6
S/P/H/U/C1600, P1600D	45.30	3＂	231	1302	18.7

• P70D ~ P1600D are exclusive absorption filters for rear end, and directions of Inlet and exit are opposite from other models.
• Drain Port Size : 1/4＂

Pressure Correction Table (barG)

Inlet Pressure(bar)	2.0	2.9	3.9	4.9	5.9	6.9	7.8	8.8	9.8	10.8	11.8	12.7	13.7	14.7	15.7
Correction Factor	0.40	0.50	0.62	0.75	0.87	1.00	1.11	1.22	1.34	1.47	1.58	1.71	1.83	1.95	2.07

Performance of NGF Series

Differential pressure performance of NGF series

Element Grade	Filter Description	Installation Position
S	Separator / filter	1. Rear end of after cooler 2. When after cooler or separator is not installed
P/PD	Filtration of general impurities / absorption type exclusive for rear end	1. Front end of high efficiency oil removal filter 2. Rear end of separator / filter 3. Rear end of absorption dryer 4. Front end of freezing dryer
H	Oil removal filter	1. Front end of absoprtion type dryer 2. Rear end of freezing dryer 3. When separator / filter is installed in the front end
U	High efficiency oil removal filter	1. Front end of absorption dryer 2. Front end of membrane dryer 3. Rear end of freezing dryer
C	Filter for removal of oil vapor and smell	1. Rear end of oil removal filter 2. Rear end of high efficiency oil removal filter

• When differential pressure exceeds 0.3bar, element needs to be replaced. Replacement of element is determined as earlier time between regular replacement period of 1 year and when differential pressure meter indicates red color
• However in case of C Grade, the lifetime of element is expired at 1,000 hours under rated conditions or when an odor is detected at the filter bottom.
