Air storage tank certified by KOSHA

Characteristics of HAV Series (Air Tank) Products

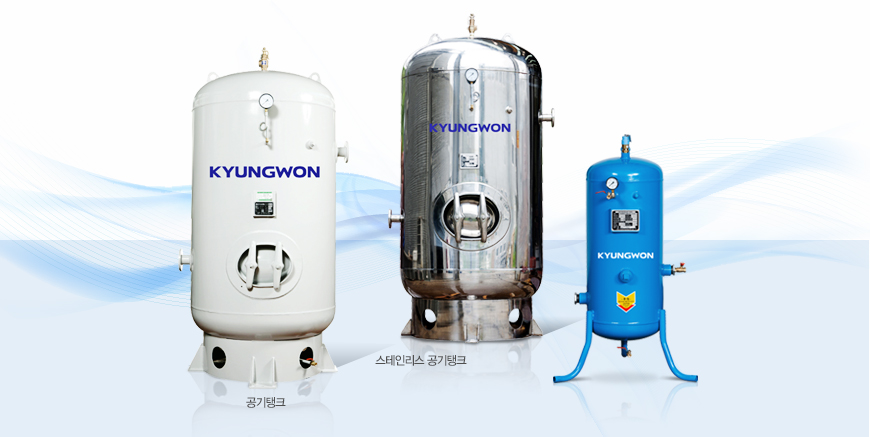

Characteristics of air tank products

• You can safely use all air tank products as they have been designed and tested according to the Occupational Safety and Health Act.
• Entrance and exit port diameters and connection method (screw connection, flange connection) were designed to be customized according to order.
• Various options
  - X-ray test (100%, 20%)
  - Shot blasting & sanding
  - Internal epoxy

Characteristics of stainless air tank products

• Stainless air tanks can be applied to high technology industries such as pharmaceutical and food industries that require high purity compressed air, as well as semiconductors.
• Options
  - Acid cleaning and buffing (inside, outside), electroytic polishing
  - In-out flange, ANSI flange, ladder
  - Manhole (flange, hinge davit type)


Standard Specification of HAV Series (Air Tank)

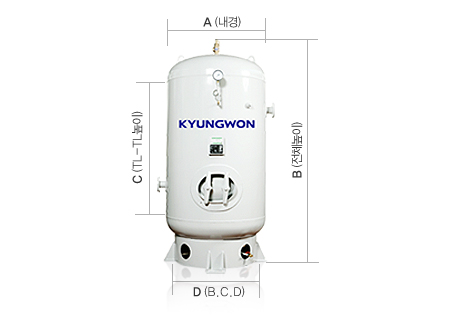

Model	Capacity	Dimension				Weight	Standard IN/OUT
	CAPA.(㎥)	A(Inner Diameter)	B(Overall Height)	C(TL-TLHeight)	D(BCD)	kg
HAV30	0.3	576	1424	960	511	135	1＂ PT
HAV50S	0.5	750	1509	955	687	210	1 1/2＂ PT
HAV60	0.6	750	1814	1260	687	250	1 1/2＂ PT
HAV80	0.8	750	2119	1565	687	290	1 1/2＂ PT
HAV100	1.0	898	1913	1280	835	360	2＂ PT
HAV150	1.5	980	2208	1580	872	554	2＂ PT
HAV200-10	2.0	1140	2432	1585	1060	860	2 1/2 ＂Flange
HAV300-10	3.0	1363	2527	1602	1260	1147	3 ＂Flange
HAV400-10	4.0	1460	2866	1902	1290	1413	3 ＂Flange
HAV500-10	5.0	1460	3476	2500	1290	1679	4 ＂Flange
HAV600	6.0	1750	3049	1900	1650	2165	4 ＂Flange
HAV700-10	7.0	1700	3570	2510	1540	2468	4 ＂Flange
HAV800-10	8.0	1810	3682.4	2516	1600	2861	4 ＂Flange
HAV900-01	9.0	1900	3900	2525	1750	3073	4 ＂Flange
HAV1000-01	10.0	1840	4318	3150	1750	3356	4 ＂Flange
HAT1200	12.0	1870	5014	3760	1700	3800	Ordered Spec
HAV1500	15.0	1860	6088	4980	1780	4750
HAV2000	20.0	2365	5200	3760	2180	4110
HAV3000	30.0	2560	6503	4985	2350	7631

• Pressure vessels according to ASME code can also be ordered for manufacture.
• High pressure tank with pressure above design pressure of 10kgf/㎤(g) can be ordered for manufacture.
• Drain Port Size : 0.3 ~ 2㎥ 15A
• Flange is FF type.

Auxiliary Air Tank

Model	Capacity	Dimension				Weight	Standard IN/OUT
	CAPA.(㎥)	A(Inner Diameter)	B(Overall Height)	C(TL-TLHeight)	D(BCD)	kg
KAT10	0.1	382	1175	740	763	55	1/2＂

Stainless Air Tank

Model	Capacity	Dimension				Weight	Standard IN/OUT
	CAPA.(㎥)	A(Inner Diameter)	B(Overall Height)	C(TL-TLHeight)	D(BCD)	kg
HAV10ST	0.1	440	1000	520	390	54	1＂ PT
HAV23ST	0.2	496	1500	1040	436	60	1＂ PT
HAV32ST	0.3	578	1600	1040	516	110	1＂ PT
HAV50S-10	0.5	650	1873	1290	588	145	1 1/2＂ PT
HAV60S	0.6	755	1634	1080	687	210	1 1/2＂ PT
HAV100S-10	1.0	898	1993	1280	835	250	2＂ PT
HAV150S-10	1.5	980	2360	1580	872	379	2＂ PT
HAV200S-10	2.0	1140	2453	1580	1012	570	2 1/2 ＂Flange
HAV300ST	3.0	1370	2476	1590	1246	860	3 ＂Flange
HAV500ST	5.0	1710	2655	1600	1710	1519	3 ＂Flange
HAV600S	6.0	1860	2819	1610	1743	1570	3 ＂Flange
