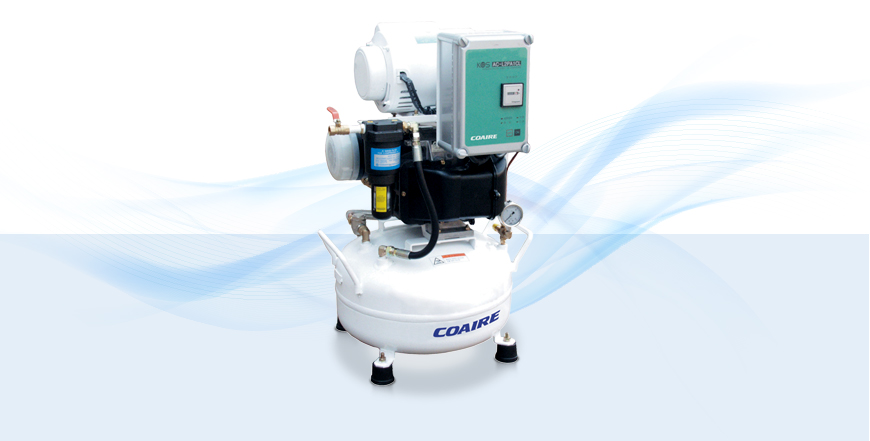

Small sized external scroll compressor with compact size and refined design

Characteristics of AL D Series

• Supply of 100% oil free air with low noise and low vibration
• Default application of stainless tank and line filter (1 micron)
• Up to 6 chair units can be used with 1 set of compressor

Standard Specification of AL N Series

Compressor Type	Max.Working Pressure		Capacity		Motor Power		Tank Volume	Filteration	Dimension(LxWxH)	Air Outlet	Weight
	kgf/㎠G	psig	LPM	CFM	kW	HP	ℓ	㎛	mm	A(B)	kg
AL3D	8.0	113.7	271	9.6	2.2	3	38	5	645x670x960	15(1/2)	90
AL5D	8.0	113.7	416	14.7	3.7	5	38	5	645x670x960	15(1/2)	100

• Specifications are subject to change without prior notice due to remodeling of products, etc.
