AR SERIES

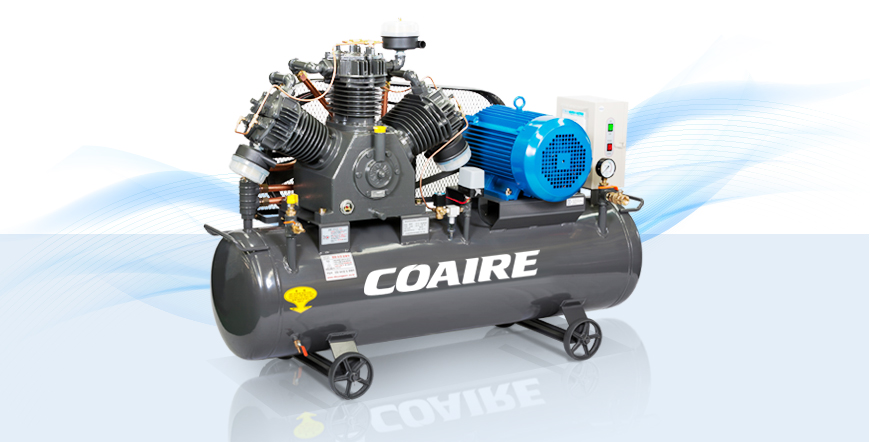

Reciprocating air compressor of Kyungwon with new concept and technology

AR 시리즈

Characteristics of AR SERIES

Features & Benefits

Airend designed and manufactured using technology of Kyungwon with know-how of 30 years
Low noise and low vibration embodied through low speed drive
Low speed drive and independent cooling system for excellent durability
Use of components with highest quality to secure outstanding performance and reliability
Application of bidirectional discharge hole for improved convenience of piping

Details of AR SERIES

Minimization of oil consumption through application of piston and 3-piece broad oil ring designed and manufactured using technology of Kyungwon

Minimization of oil mist & blow based on optimized design of airend

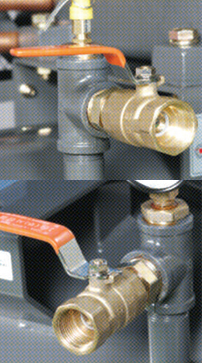

Dual Port
Direction of pipe can be freely selected by the user during installation

Safety Valve
Highest stability guaranteed through application of safety valve certified by Occupational Safety & Health Agency

Oil hole cap
Breakaway was fundamentally prevented by improving the attachment method of oil hole cap

Pressure switch
3-contact normal close type high performance spec of Danfoss applied

Control box
Operation switch was installed according to user movement to prevent unnecessary control of machine

Standard Specification of AR Series

Model	Output	No. of Cylin ders	Bore x Stroke	Piston Displac ement	Revol utions	Max. Work ing Pre ssure	Safety Valve Working Pressure	Tank Capacity	Air outlet	Belt Spec	Operation Method	Dimen sion	Wt
Model	kW(HP)	EA	mm	ℓ/min	rpm	kgf/㎠G	kgf/㎠G	ℓ	A	Belt Spec	Operation Method	LxWxH(mm)	kg
AR5(S)	3.7(5)	2	90x108	618	450	9.5	9.9	150(500)	15	B88x2	Pressure Switch System / Automatic Unloader System	1440x570x1100 (1830x690x1380)	221 (351)
AR7(S)	5.5(7.5)	2	90x108	934	680	9.5	9.9	150(500)	15	B90x3		1440x570x1100 (1830x690x1380)	246 (376)
AR10(S)	7.5(10)	4	90x100	1272	500	9.5	9.9	240(500)	25	B92x3		1705x630x1135 (1830x690x1300)	362 (441)
AR15(S)	11(15)	4	90x100	1909	750	9.5	9.9	280(500)	25	B96x3		1825x630x1135 (1830x690x1300)	398 (452)
AR20(S)	15(20)	6	90x100	2519	660	9.5	9.9	280(500)	25	B97x3		1825x660x1305 (1830x690x1480)	461 (515)

Specifications are subject to change without prior notice due to remodeling of products, etc.
