(Pressure Switch & automatic Unloading)

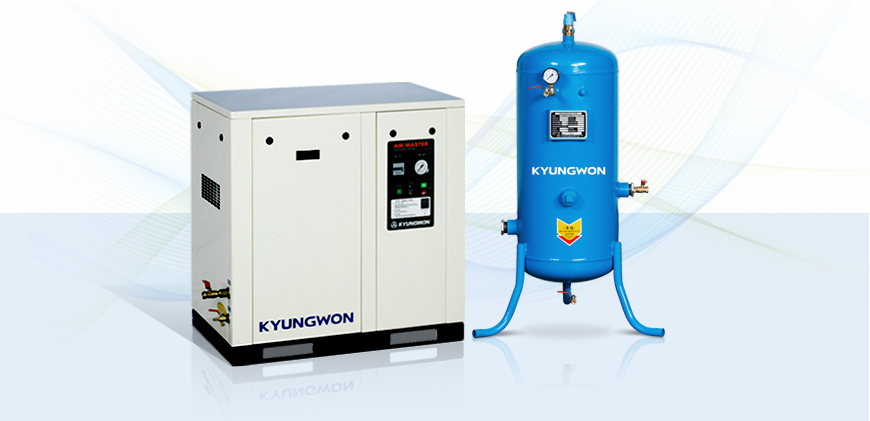

Characteristics of Package Type P-U

Features & Benefits

• Switching of operation mode (P-U conversion switch) to select operation method between automatic unloading method and pressure switch method
• Sound absoprtion material and vibration-proof material are attached inside the package for use in places that require low noise and low vibration
• Auxiliary air tank provided separate from the package (excluding 1HP~2HP products))

Standard Specification of Package Type P-U

Model	Moter	Bore x Stroke	No.of Cylin der	Piston Displace ment		Free Air Delivery		Max. Working Pressure		Air Receiver Tank Volume		Air Outlet	Dimension	Weight
	kW(HP)	mm	-	LPM	CFM	LPM	CFM	kgf/㎠(g)	psi(g)	Main(ℓ)	Sub(ℓ)	A(B)	LxWxH(mm)	kg
AC-P1CA2	0.75 (1)	60x50	1	141	4.98	84	3.0	7.0	99.6	25	-	15A (1/2)	960x660x970	118
AC-P2CA2	1.5 (2)	82x50	1	285	10.1	165	5.8	7.0	99.6	25	-	15A (1/2)	960x660x970	130
AC-P3CA2	2.2 (3)	82x50	2	417	14.7	255	9.0	7.0	99.6	25	-	15A (1/2)	960x660x970	155
AC-P5CA2	3.7 (5)	90x60	2	657	23.2	430	15.1	7.0	99.6	25	100	15A (1/2)	1200x710x1030	242
AC-P7.5CA2	5.5 (7.5)	90x60	3	985	34.8	640	22.6	7.0	99.6	25	100	15A (1/2)	1200x710x1030	328

• Specifications are subject to change without prior notice due to remodeling of products, etc.
